제품번호 : 10

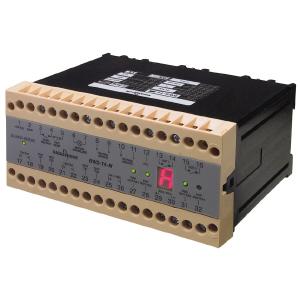

SB-BWS-T4 시리즈 : Type 4 콘트롤 유니트

Double relay out
Device for body protection and access control
Functioning with up to 4 emitter-receiver photoelectric sensors
Versions with Muting double Muting and Override functions

특징

• Functioning with up to 4 emitter-receiver photoelectric sensors
• Double relay out
• Versions with Muting double Muting and Override functions
• Device for body protection and access control

사양


모델 카테고리 범위 (m)
S5-FG-ST4 Type 4 0 ~ 8
S10-FG-ST4 Type 4 0 ~ 8
SL5-FG-ST4 Type 4 0 ~ 40
S30-FG-ST4 Type 4 0 ~ 50
Technical Data
전원24V DC
출력2 safety relay outputs with NO contact
커넥션terminal block with 32 screw contacts
보호 등급IP20
사용 온도-10°C ~ 55°C
